MSI GeForce RTX 5070 SHADOW 2X OC 12GB Graphics Card

GPU / Memory / Architecture

• GPU: NVIDIA GeForce RTX 5070 (Blackwell architecture)
• CUDA cores: 6,144
• Memory: 12 GB GDDR7
• Memory bus: 192-bit
• Memory speed: 28 Gbps
• Memory bandwidth: ~672 GB/s

Clock Speeds

• Base clock: ~2325 MHz
• Boost clock: ~2542 MHz
• Extreme Performance (via MSI Center): ~2557 MHz

Core Hardware Specs

• Texture units (TMUs): 192
• ROPs: 80
• Ray tracing cores: 48 (4th-gen)
• Tensor cores: 192 (5th-gen)

Interface & Display Outputs

• PCIe interface: PCI Express 5.0 ×16
• Outputs:
  • 3 × DisplayPort 2.1b
  • 1 × HDMI 2.1b
• Max digital resolution: up to 8K
• Supports up to 4 monitors

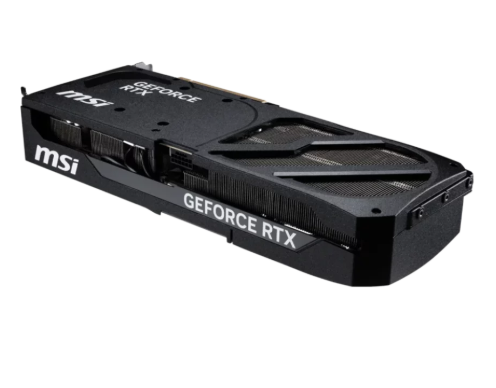

Cooling / Build Quality

• Dual-fan design (TORX Fan 5.0)
• Large heatsink with Core Pipes heat pipes
• Nickel-plated copper baseplate
• Reinforced backplate for rigidity and airflow
• 2.2-slot design

Power Requirements

• Typical GPU power (TGP): 250 W
• Power connector: 1 × 16-pin (12VHPWR)
• Recommended PSU: 650 W

Physical Specifications

• Dimensions: ~231 × 126 × 50 mm
• Weight: varies by region (dual-fan compact card)

Use-Case / Performance Target

• Excellent for 1080p and 1440p high-refresh gaming
• Strong ray tracing performance with DLSS 4 / Multi-Frame Generation
• Also supports high-resolution output such as 4K and 8K with DisplayPort 2.1b
