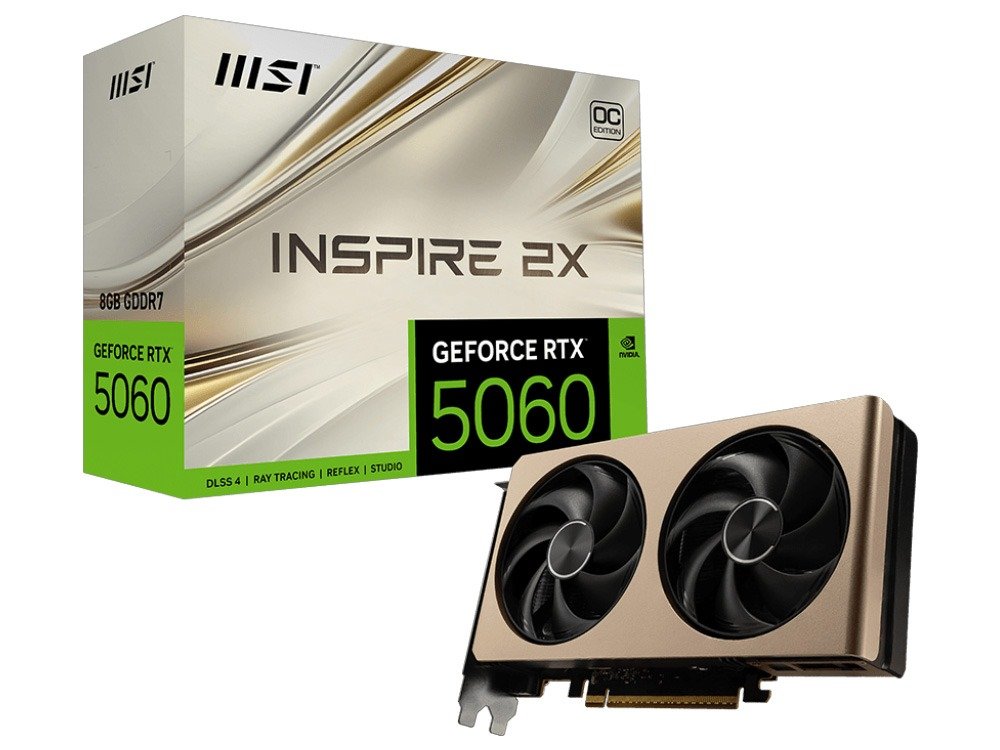

MSI GeForce RTX 5060 8G INSPIRE 2X OC Graphics Card

GPU / Memory / Architecture

• GPU: NVIDIA GeForce RTX 5060 (Blackwell architecture)
• CUDA cores: 3840
• Memory: 8 GB GDDR7
• Memory bus: 128-bit
• Memory speed: 28 Gbps

Clock Speeds

• Boost clock: ~2535 MHz
• Extreme Performance mode: ~2550 MHz (via MSI Center)

Interface & Display Outputs

• PCIe interface: PCI Express Gen 5 ×16 (operates electrically at ×8)
• Display outputs:
  • 3 × DisplayPort 2.1b
  • 1 × HDMI 2.1b
• Max digital resolution: 7680 × 4320 (8K)
• Supports up to 4 displays

Cooling & Design

• Cooling: Dual-fan INSPIRE 2X design
• Features:
  • Large heatsink

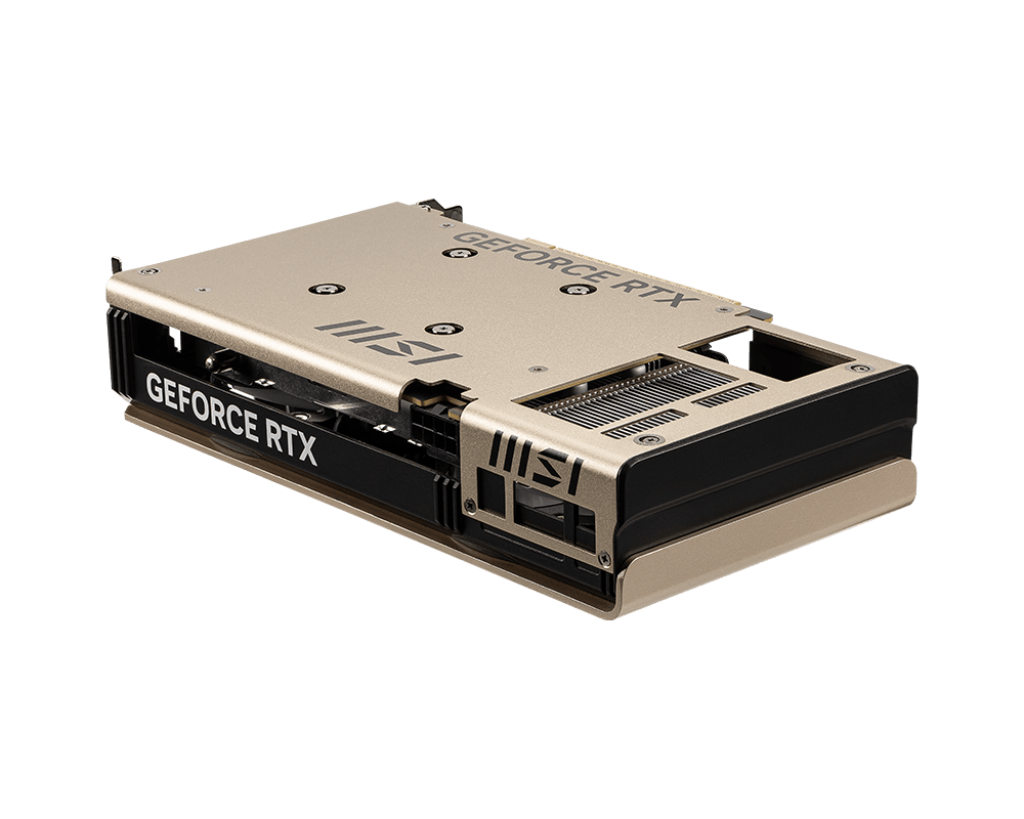

  • Metal backplate with airflow cutouts
  • Zero Frozr (fans stop during low load)
• Slot size: Dual-slot
• Approx. dimensions: 204 × 117 × 41 mm

Power Requirements

• GPU power (TGP): ~145 W
• Power connector: 1 × 8-pin PCIe
• Recommended PSU: 550 W

API & Feature Support

• DirectX 12 Ultimate
• Vulkan
• OpenGL 4.6
• Ray tracing, DLSS (50-series generation), and modern NVIDIA features

Use-Case / Performance Target

• Excellent for 1080p gaming
• Good for 1440p gaming with DLSS
• Efficient low-power Blackwell architecture, suitable for compact builds
