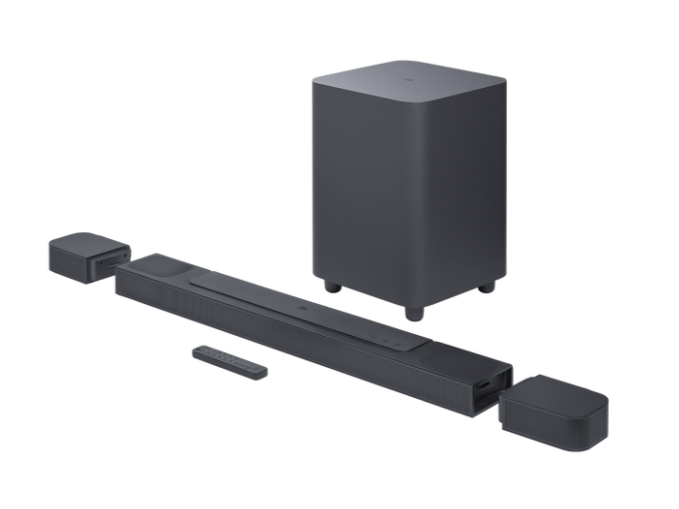

JBL Bar 800 with Dolby Atmos® includes two up-firing drivers, a 10” subwoofer.

Audio & Sound System

• Sound configuration: 5.1.2‑channel (soundbar + wireless subwoofer + detachable surround speakers)
• Total maximum output power: 720 W
  • Soundbar output: 340 W
  • Surround (rear) speakers: 2 × 40 W
  • Subwoofer output power: 300 W
• Soundbar speaker drivers:
  • 3 × racetrack drivers (46 × 90 mm)
  • 3 × 0.75″ (20 mm) tweeters
  • 2 × 2.75″ (70 mm) up‑firing full-range drivers for height/Atmos effects
• Subwoofer: 10″ (260 mm) wireless subwoofer for deep bass
• Frequency response: 35 Hz – 20 kHz (–6 dB)

Connectivity & Inputs

• HDMI: 1 × HDMI input, 1 × HDMI output with eARC/ARC and HDR pass‑through (HDR10, Dolby Vision)
• Optical digital audio input: 1
• Wireless: Bluetooth 5.0 for streaming from phones, tablets, etc.
• Network/Wi‑Fi: Built-in Wi‑Fi (2.4 GHz & 5 GHz) for streaming, Chromecast, AirPlay, multi-device audio
• USB port: USB Type-A (for playback or service)
• Compatible with optional wireless rear speakers
• Works with “One Remote Control” on supported TVs

Physical & Power Specs

• Soundbar dimensions: 1174 × 56 × 120 mm
• Subwoofer dimensions: 305 × 440.4 × 305 mm
• Soundbar weight: ~ 3.4 kg
• Subwoofer weight: ~ 10 kg
• Power supply: 100–240 V AC, 50/60 Hz
• Standby power consumption: < 2.0 W

Key Features

• True 5.1.2 surround sound with detachable wireless surround speakers
• 10″ wireless subwoofer for deep, powerful bass
• Up-firing drivers for Dolby Atmos / 3D audio effects
• Multiple connectivity options: HDMI eARC, optical, Bluetooth, Wi‑Fi, USB
• Frequency response down to 35 Hz for good bass
• Wireless rear speakers reduce cable clutter and simplify setup
