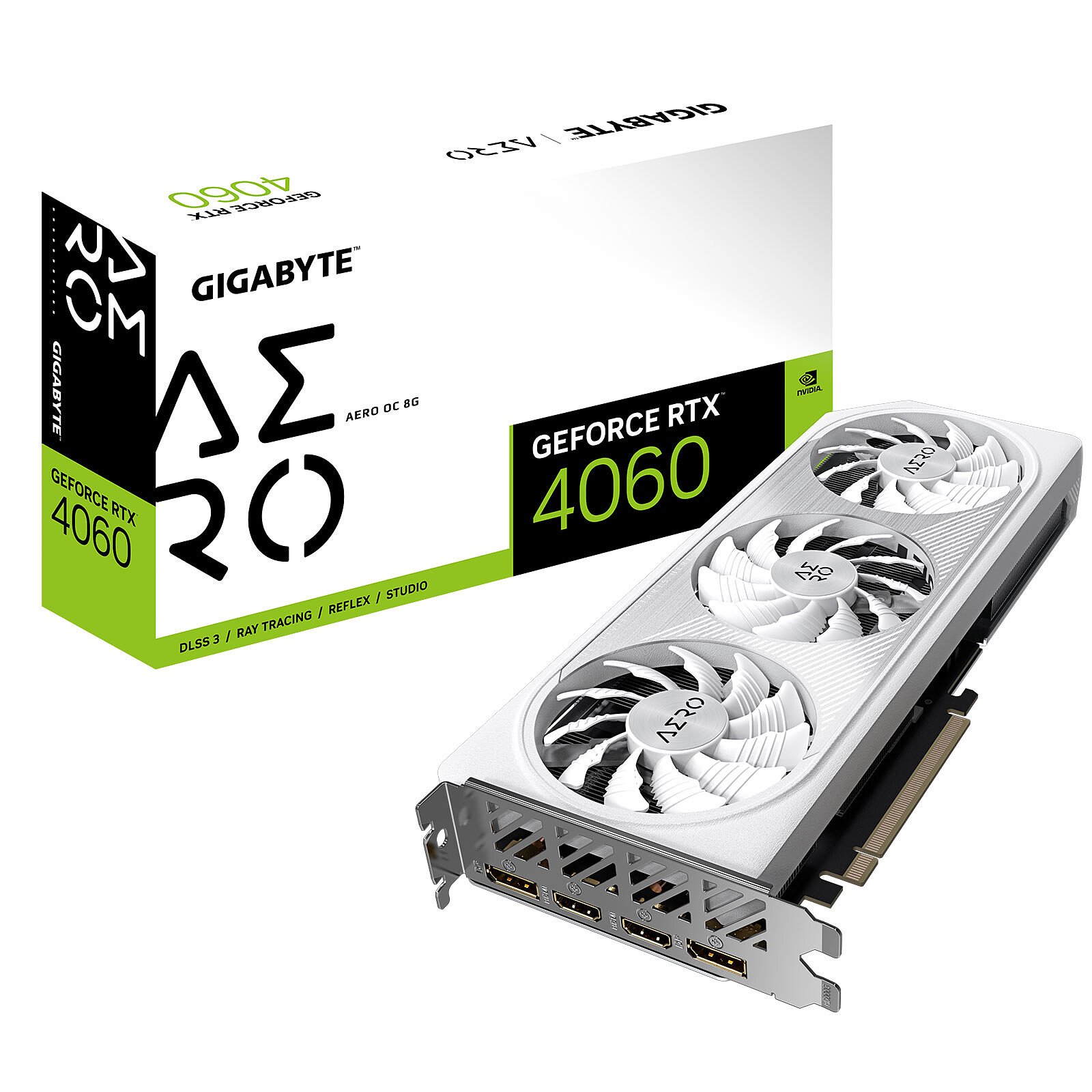

Gigabyte GeForce RTX 4060 AERO OC 8G

GPU / Memory / Architecture

• GPU: NVIDIA GeForce RTX 4060 (Ada Lovelace, AD107)
• CUDA cores: 3,072
• Memory: 8 GB GDDR6
• Memory bus: 128-bit
• Memory speed: 17 Gbps
• Memory bandwidth: ~272 GB/s

Clock Speeds

• Base clock: 1,830 MHz
• Boost clock (OC): 2,550 MHz

Core Hardware Specs

• Texture units (TMUs): 96
• ROPs: 48
• Ray tracing cores: 24
• Tensor cores: 96

Interface & Display Outputs

• PCIe interface: PCI Express 4.0 ×8
• Outputs:
  • 2 × DisplayPort 1.4a
  • 2 × HDMI 2.1a
• Max resolution: 7680 × 4320 (8K)
• Multi-display support: up to 4 monitors

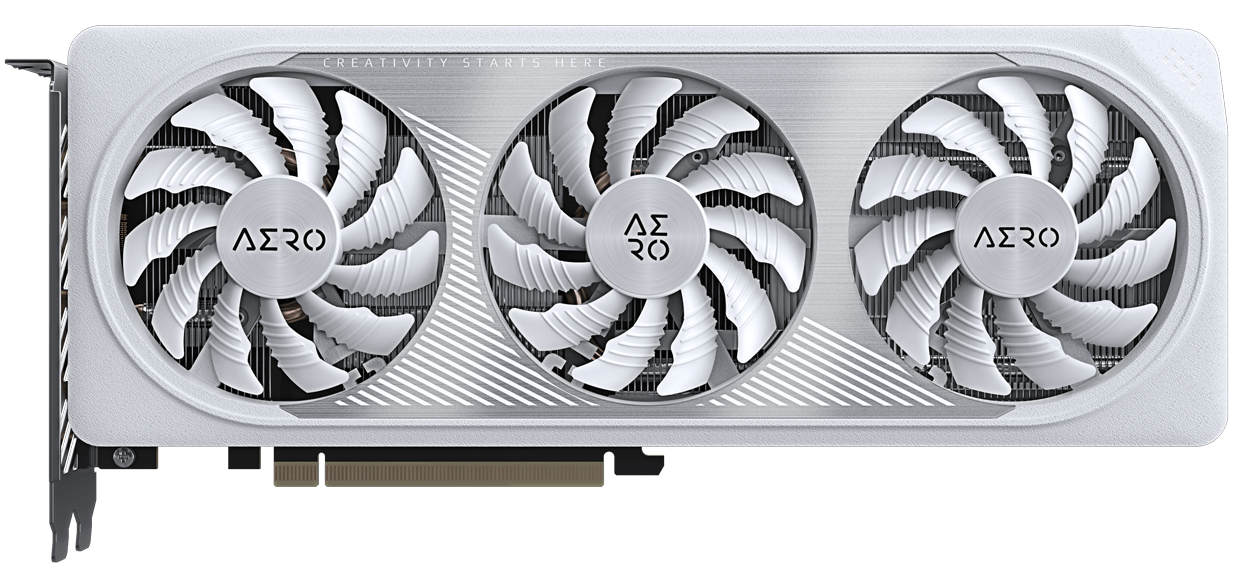

Cooling / Design

• Windforce cooling system (triple-fan design)
• Optimized heatsink with heat pipes
• 2-slot design
• White AERO-themed shroud

Power Requirements

• Typical GPU power: ~115 W
• Power connector: 1 × 8-pin PCIe
• Recommended PSU: 450 W

Physical Specs

• Dimensions: approx. 281 × 114 × 38 mm

Use-Case / Performance Target

• Great for 1080p high-fps gaming
• Good for 1440p with DLSS 3
• Supports ray tracing, DLSS 3 frame generation, and modern NVIDIA features
